High Frequency Power Inductor
A Three-Phase Coil for Motor Drives
Wenzhou Mingyue Electric Co., Ltd. has been operating in Liushi Town, Yueqing City for 7 years. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team and can carry out product design independently. Our production complies with environmental requirements.
Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. If goods are damaged during shipping, we repair or remake them. We provide a 5-year warranty. This High Frequency Power Inductor is used in three-phase motor frequency converters.
If goods are damaged during shipping, we repair or remake them. We provide a 5-year warranty. This high-power common-mode inductor is one of our products. The High Power Inductor is available for different specifications and applications.
Three-Phase Winding and High Insulation
This unit is available with three core material options: nanocrystalline, amorphous, and ferrite. The inductance ranges from 0.5mH to 50mH and can be customized according to your requirements. The rated current ranges from 10A to 80A, with high-current specifications also available.

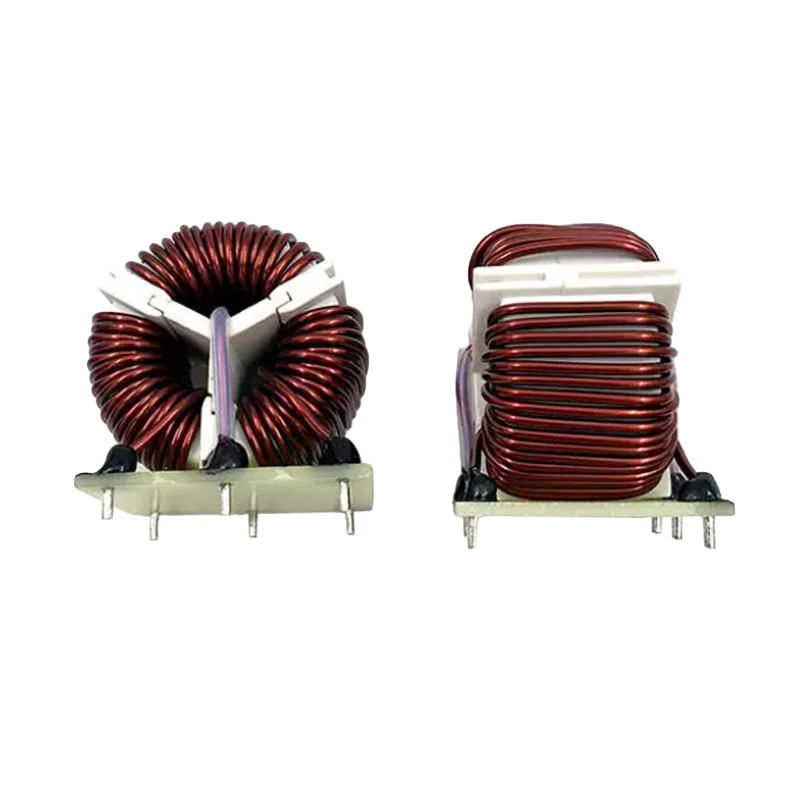

The winding uses multi-strand enameled copper wire or flat copper wire with a three-phase symmetrical winding structure. The insulation withstand voltage ranges from AC2500V to 4000V. Different voltage levels can be selected according to your requirements. The structure uses a ring core with three-phase windings and PCB through-hole pins. A fiberglass board base and epoxy reinforcement provide a firm structure.
Filtering Noise in Motor Systems
We support OEM and ODM services. The minimum order quantity is 30 units. Different models can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The High Frequency Power Inductor operates from 2kHz to 200kHz, with a working temperature range of -40°C to 120°C. It is mainly used in three-phase motor frequency converters, servo drives, three-phase power filters, and solar inverters. It filters three-phase common-mode interference and suppresses EMI noise. The High Frequency Power Inductor is suitable for high-power frequency conversion applications that require these functions.
Product Parameters
|
Parameter |
Value |
|
Core Material |
Nanocrystalline / Amorphous / Ferrite (Optional) |
|
Inductance |
0.5mH–50mH (Customization Supported) |
|
Rated Current |
10A–80A (High-Current Specifications Available) |
|
Winding |
Multi-Strand Enameled Copper Wire / Flat Copper Wire, Three-Phase Symmetrical Winding |
|
Insulation Withstand Voltage |
AC2500V–4000V (Optional) |
|
Structure |
Ring Core, Three-Phase Windings, PCB Through-Hole Pins, Fiberglass Board Base + Epoxy Reinforcement |
|
Working Frequency |
2kHz–200kHz |
|
Working Temperature |
-40°C–120°C |
|
Applications |
Three-Phase Motor Frequency Converters, Servo Drives, Three-Phase Power Filters, Solar Inverters |
