Precision Inductor
A Stable Low Frequency Power Part
Wenzhou Mingyue Electric Co., Ltd. is based in Liushi Town, Yueqing City. We started manufacturing electrical equipment in 2019 and now have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team and can carry out product design independently.
Our production complies with environmental requirements. Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them. This DB-15W transformer is one of our regular Precision Inductor products.
Two Independent Output Windings

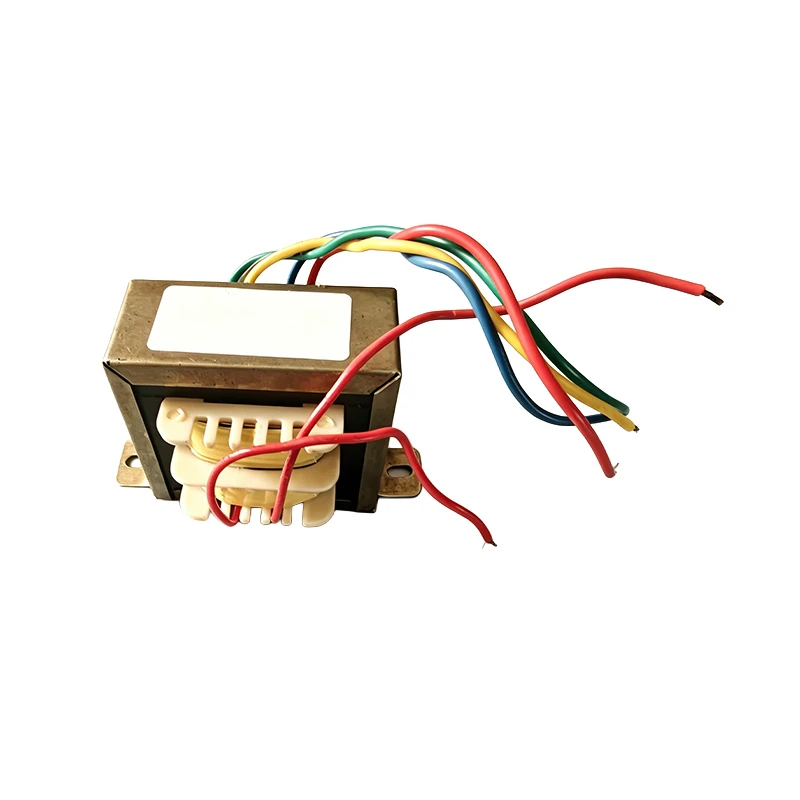

This is a DB-15W EI-type low-frequency power transformer with a capacity of 15VA. The core uses EI silicon steel sheets. The magnetic path design is reasonable. The input is AC220V and supports both 50Hz and 60Hz. The red wire is the input. The output has two independent windings. One winding runs from 0V red to 12V blue and provides AC12V. The other runs from 12V yellow to 20V green and provides AC20V.
The winding uses pure copper enameled wire. The Precision Inductor provides stable electrical performance. The insulation withstand voltage is AC2000V/1min. The structure uses an EI core with independent output windings.
Easy to Identify and Install
We support OEM and ODM services. The minimum order quantity is 30 units. Different models can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Precision Inductor uses an EI core, a metal shell, and a fixed mounting bracket. Multi-color lead wires make the connections easy to identify. The working temperature ranges from -20°C to 85°C. It is mainly used in industrial control boards and instruments. It provides step-down and rectifier power supply functions. It is also commonly used as a low-frequency transformer in control circuits.
one-stop solution
professional team
high quality
Product Parameters
|
Parameter |
Value |
|
Model |
DB-15W (15VA) EI-Type Low-Frequency Power Transformer |
|
Core |
EI Silicon Steel Sheet Core |
|
Input |
AC220V, 50/60Hz (Red Wire) |
|
Output |
Dual AC12V, Dual AC20V |
|
Winding |
Pure Copper Enameled Wire |
|
Insulation Withstand Voltage |
AC2000V/1min |
|
Structure |
EI Core, Metal Shell, Mounting Bracket, Multi-Color Lead Wires |
|
Working Temperature |
-20°C–85°C |
|
Applications |
Industrial Control Boards, Instrument Power Supply Step-Down, Rectifier Power Supply |
