Inductive Component
Small Parts with Big Filtering Jobs
Wenzhou Mingyue Electric Co., Ltd. has been operating in Liushi Town, Yueqing City for 7 years. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team and can carry out research and product design independently. Our production complies with environmental requirements.
Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. If goods are damaged during shipping, we repair or remake them. We provide a 5-year warranty. This SMD shielded power inductor is one of our electronic components. The Inductive Component is available for different specifications and applications.
Clear Markings and Low Resistance

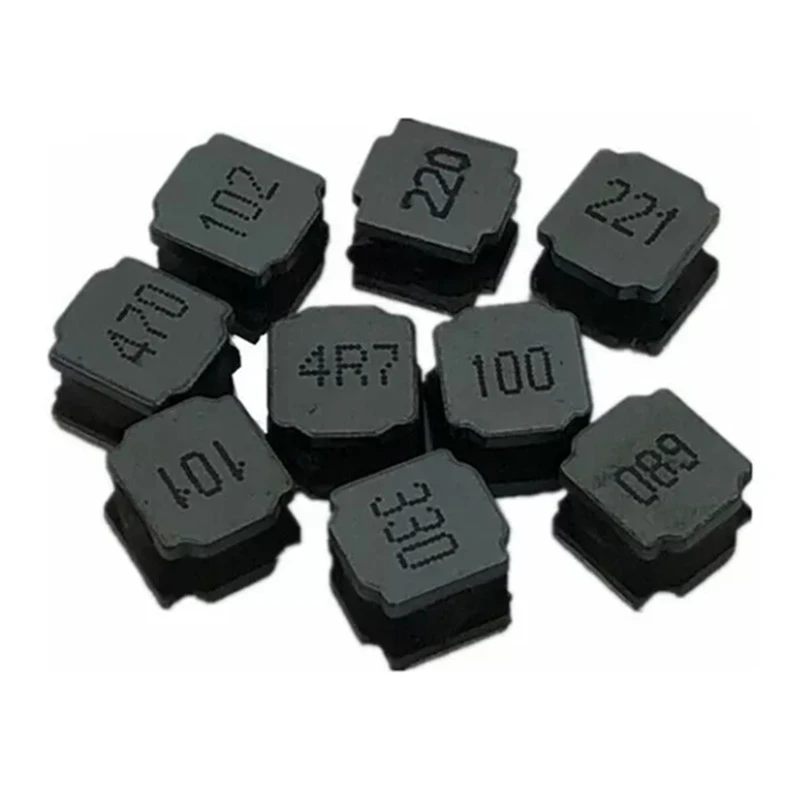

This is an SMD shielded power inductor with an inductance range of 0.47μH to 1000μH. The silk-screen marking shows the inductance value. For example, 4R7 means 4.7μH, 100 means 10μH, and 220 means 22μH. The rated current ranges from 0.6A to 10A. Multiple specifications are available.
The core uses a shielded magnetic cover structure for effective magnetic shielding and low magnetic leakage. The winding uses enameled copper wire. Molded and shielded structures are available. The DC resistance (DCR) is low, which helps reduce heat loss. Package sizes include 0402, 0603, 0805, 1040, and 1250.
Ready for Automatic Assembly
We support OEM and ODM services. The minimum order quantity is 30 units. Different models can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Inductive Component operates from -40°C to +125°C. It uses SMT reflow soldering and is suitable for automatic assembly and large-volume placement. It is mainly used in switching power supplies, DC-DC modules, motherboards, and LED drivers. Its functions include energy storage and filtering.
Product Parameters
|
Parameter |
Value |
|
Model Type |
SMD Shielded Power Inductor |
|
Inductance |
0.47μH–1000μH (Silk-Screen Marking) |
|
Rated Current |
0.6A–10A (Multiple Specifications Optional) |
|
Core Structure |
Shielded Magnetic Cover Structure, Good Magnetic Shielding, Low Magnetic Leakage |
|
Winding |
Enameled Copper Wire, Molded / Shielded Structure Optional |
|
DC Resistance DCR |
Low DC Resistance |
|
Package Size |
0402 / 0603 / 0805 / 1040 / 1250, etc. |
|
Working Temperature |
-40°C–+125°C |
|
Soldering Method |
SMT Reflow Soldering |
|
Applications |
Switching Power Supplies, DC-DC Modules, Motherboards, LED Drivers, Energy Storage, Filtering |
