Enclosed Switchgear
A Closed Cabinet for Clean Power
Wenzhou Mingyue Electric Co., Ltd. is based in Liushi Town, Yueqing City. We started manufacturing electrical equipment in 2019 and now have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team and can carry out product design independently.
Our production complies with environmental requirements. Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them. This solid insulation eco cabinet is part of our Enclosed Switchgear range.
Strong Frame and Clear Inside Space

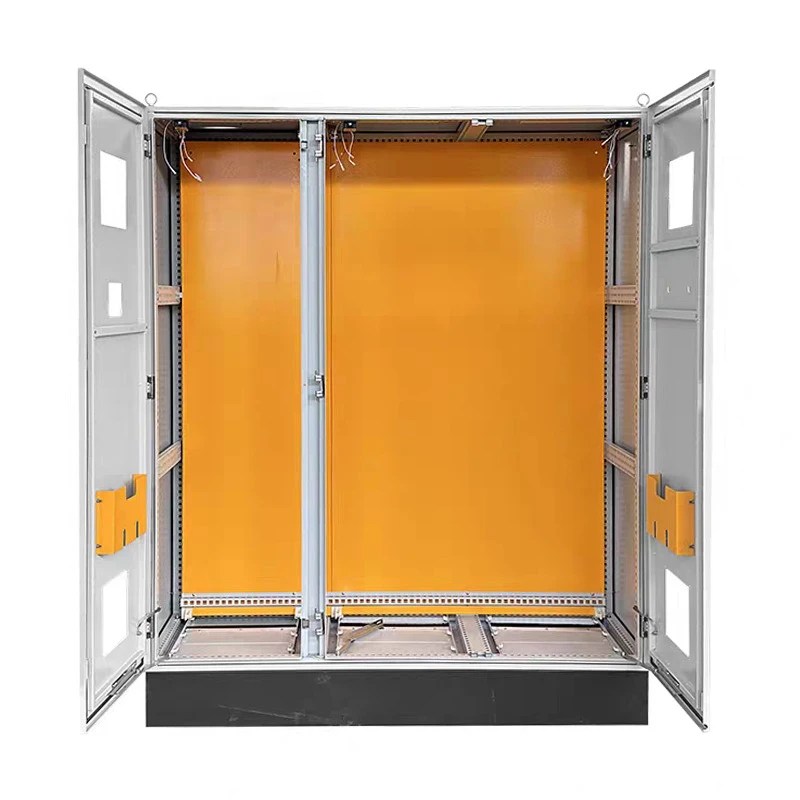

This is a closed complete switch cabinet. It is also known as a solid insulation eco cabinet or PLC control cabinet. The cabinet uses bent cold-rolled steel plate with an electrostatic powder coating. The base uses thickened carbon steel. The mounting back plate is made of orange insulation board, which provides insulation and supports the internal components.
The protection level is IP30 for the indoor enclosed type, while the solid insulation eco cabinet can reach IP40. The low-voltage type is rated AC380V/220V, and the high-voltage solid insulation type is rated at 12kV. The structure is floor-standing with double doors and a reserved viewing window. Lifting rings are installed on the top for hoisting. Profile-based modular mounting beams inside provide flexible component arrangement.
Green Design and Full Protection
We support OEM and ODM services. The minimum order quantity is 30 units. Different configurations can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Enclosed Switchgear is suitable for low-voltage complete control cabinets, power cabinets, and high-voltage solid insulation ring main eco cabinets. The high-voltage type uses a fully enclosed structure without SF6 gas. It can be configured with circuit breakers, contactors, PLCs, meters, and secondary circuits. Protection functions include overload, short circuit, and ground fault protection.
The working temperature ranges from -20°C to +40°C. Humidity must not exceed 90%, and condensation is not allowed. It is suitable for indoor use. The cabinet size, door type, holes, component layout, and secondary wiring can be customized according to your requirements. The Enclosed Switchgear can be configured according to the required cabinet structure and internal layout.
Product Parameters
|
Parameter |
Value |
|
Product Name |
Enclosed Complete Switch Cabinet (Solid Insulation Eco Cabinet, PLC Control Cabinet) |
|
Cabinet Material |
Cold-Rolled Steel Plate, Electrostatic Powder Coating; Thickened Carbon Steel Base |
|
Mounting Back Plate |
Orange Insulation Mounting Plate |
|
Protection Level |
IP30 (Indoor Enclosed); Solid Insulation Eco Cabinet IP40 |
|
Rated Voltage |
Low Voltage AC380V/220V; High Voltage 12kV |
|
Structure |
Floor-Standing Double Doors, Reserved Viewing Window, Top Lifting Rings |
|
Application Type |
Low Voltage Complete Control Cabinet, Power Cabinet; High Voltage Solid Insulation Ring Main Eco Cabinet |
|
Function Setup |
Circuit Breakers, Contactors, PLC, Meters, Secondary Circuits |
|
Protection Features |
Overload, Short Circuit, Ground Fault Protection |
|
Custom Range |
Cabinet Size, Door Type, Holes, Part Layout, Secondary Wiring |
