Medium Voltage Cabinet
A Cabinet That Splits and Protects Power
Wenzhou Mingyue Electric Co., Ltd. manufactures this Medium Voltage Cabinet for power distribution systems. Its main functions are power distribution and circuit protection. Power from the transformer first enters the cabinet instead of going directly to each machine. The cabinet then distributes the power to the downstream branch circuits.
The rated voltage is AC380V/220V at 50Hz. The incoming line can carry up to 630A. It is suitable for indoor power distribution rooms and factories. The working temperature ranges from -20°C to +60°C. Humidity must not exceed 85%, and condensation is not allowed.
A Layout That Makes Work Easy

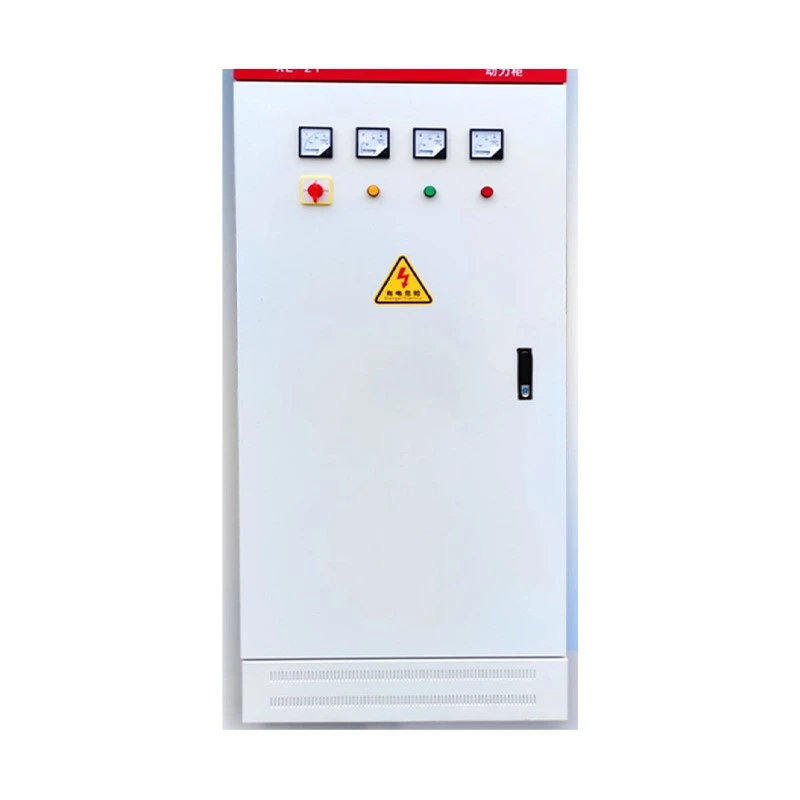

The unit has a floor-standing structure with a single door. When the door is opened, the main components and controls are accessible from the front. The door holds an ammeter, a voltmeter, indicator lights, and a changeover switch. This arrangement makes operation more convenient.

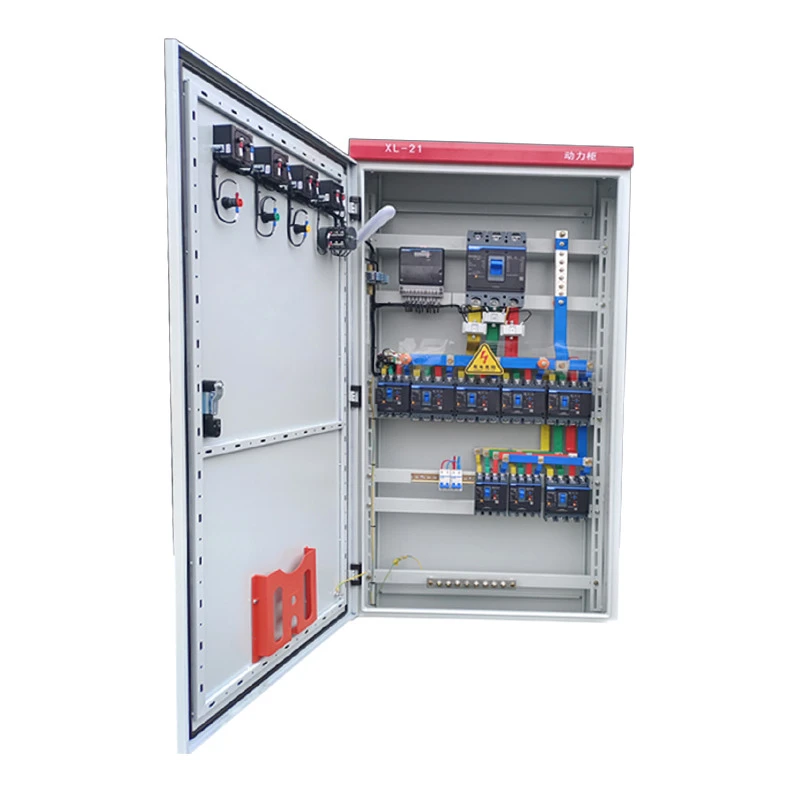

Inside, modular mounting beams allow the component layout to be adjusted. The beams can be moved up or down according to the required installation position. The layout is flexible. The copper busbar wiring is arranged according to the required configuration. The main components include molded case circuit breakers (MCCB) and miniature circuit breakers (MCB), as well as neutral and ground copper bars. Component brands can be specified. Chint, Delixi, or Schneider components can be selected, and we install the selected components according to your order list.
Protection You Can Set to Your Needs
The standard setup provides short circuit protection and overload protection. When a short circuit occurs, the breaker trips to disconnect the fault. During an overload, the thermal-magnetic trip operates with a delay rather than disconnecting the circuit immediately. Leakage protection is optional and can be added when required.
We have been operating in Liushi Town, Yueqing City for 7 years. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team. Before each cabinet leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them at our factory and cover the freight cost.
The cabinet uses cold-rolled steel plate with an electrostatic powder coating. The base has a thickened structure and provides resistance to rust and corrosion. The circuit number, meter layout, component brand, and secondary wiring can be customized according to your drawings and requirements. The Medium Voltage Cabinet can be configured according to the required circuit arrangement and wiring plan.
one-stop solution
professional team
high quality
Product Parameters
|
Parameter |
Value |
|
Cabinet Material |
Cold-Rolled Steel Plate, Electrostatic Powder Coating, Thickened Floor-Standing Base |
|
Protection Level |
IP30 (Indoor) |
|
Rated Voltage |
AC380V/220V, 50Hz |
|
Rated Current |
Incoming Up to 630A |
|
Structure Type |
Floor-Standing Single Door, Door With Meters, Indicator Lights, Changeover Switch |
|
Inside Structure |
Modular Mounting Beams, Copper Bar Wiring |
|
Parts |
Molded Case Circuit Breakers (MCCB), Miniature Circuit Breakers (MCB), Current and Voltage Meters, Indicator Lights, Neutral and Ground Copper Bars |
|
Protection Functions |
Short Circuit Protection, Overload Protection (Leakage Protection Optional) |
|
Working Environment |
-20°C~+60°C, Humidity ≤85%, No Condensation |
|
Custom Range |
Circuit Number, Meter Layout, Part Brand, Secondary Wiring |
