Distribution Board
A Wall Box for Safe Power
Wenzhou Mingyue Electric Co., Ltd. has been operating in Liushi Town, Yueqing City for 7 years. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team. Our production complies with environmental requirements.
Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them. This wall-mounted Distribution Board is one of our products.
Indoor and Outdoor Material Choices

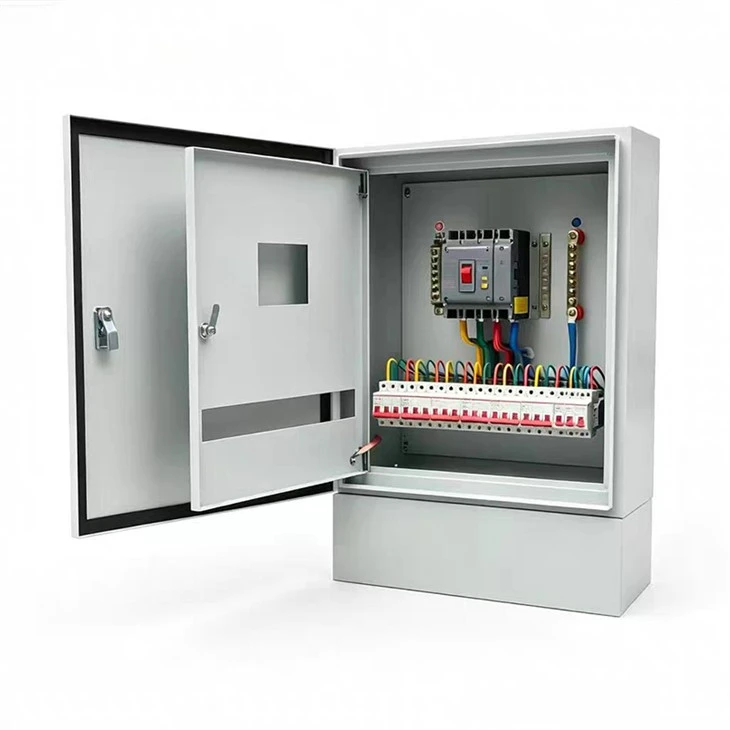

This is a complete assembled electric control box that mounts on a wall. The box is available in two material options. The indoor type uses cold-rolled steel plate with an electrostatic powder coating for corrosion protection. The outdoor type uses 304 or 201 stainless steel. The indoor type has IP30 protection, while the outdoor stainless steel type has IP54 protection against rain and dust.

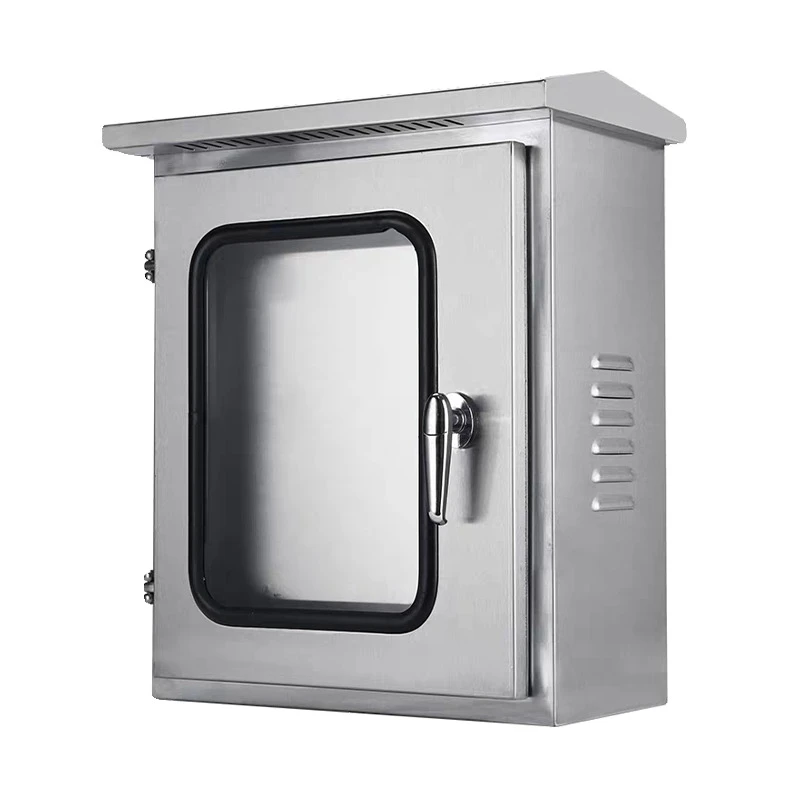

The rated voltage is AC220V or AC380V at 50Hz. The main incoming current can reach 250A. The current for each branch circuit can be configured according to your requirements. The internal components include molded case circuit breakers, miniature circuit breakers, copper busbars, and terminals. Component brands can be specified. The box has a single door with a lock. The outdoor type has a rainproof top. A clear glass window can also be added.
Ready for Your Project Needs
We support OEM and ODM services. The minimum order quantity is 30 units. Different models can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Distribution Board provides short circuit protection and overload protection. Leakage protection is optional. The indoor type operates from -20°C to +60°C, while the stainless steel outdoor type operates from -20°C to +55°C. The box size, circuit number, component brand, wiring plan, and hole layout can be customized according to your drawings.
The Distribution Board can be configured according to the required circuit arrangement, component selection, wiring plan, and installation dimensions.
one-stop solution
professional team
high quality
Product Parameters
|
Parameter |
Value |
|
Product Name |
Complete Assembled Electric Control Box (Wall-Mounted Distribution Board) |
|
Box Material |
Cold-Rolled Steel Plate, Electrostatic Powder Coating (Indoor) / 304/201 Stainless Steel (Outdoor) |
|
Protection Level |
Indoor IP30; Outdoor Stainless Steel IP54 |
|
Rated Voltage |
AC220V/AC380V, 50Hz |
|
Main Incoming Current |
Up to 250A |
|
Inside Parts |
Molded Case Circuit Breakers, Miniature Circuit Breakers, Copper Bars, Terminals (Brand Optional) |
|
Structure |
Wall-Mounted, Single Door With Lock; Outdoor Type With Rainproof Top |
|
Protection Functions |
Short Circuit Protection, Overload Protection (Leakage Protection Optional) |
|
Custom Range |
Box Size, Circuit Number, Part Brand, Wiring Plan, Hole Layout |
