Metal Clad Switch Gear
Armored Means Safer Inside
Wenzhou Mingyue Electric Co., Ltd. manufactures this Metal Clad Switch Gear for power control applications that require compartmentalized protection. The live parts inside are enclosed by metal barriers instead of being exposed. This structure helps separate the internal electrical sections. If a fault occurs in one phase, the arc is contained within its compartment and is less likely to spread to adjacent sections.
During maintenance, the relevant compartment can be opened while the other compartments remain closed. This also helps prevent direct contact with live parts. The rated voltage is AC380V/AC220V at 50Hz, and the main incoming current reaches 630A.
Strong Cabinet with Clear Access
The cabinet uses quality cold-rolled steel plate with an electrostatic powder coating. The bottom has a ventilated cooling base with louvers. Hot air is discharged through the ventilation structure, while cooler air enters from below to maintain natural airflow. The protection level is IP30 for indoor use.

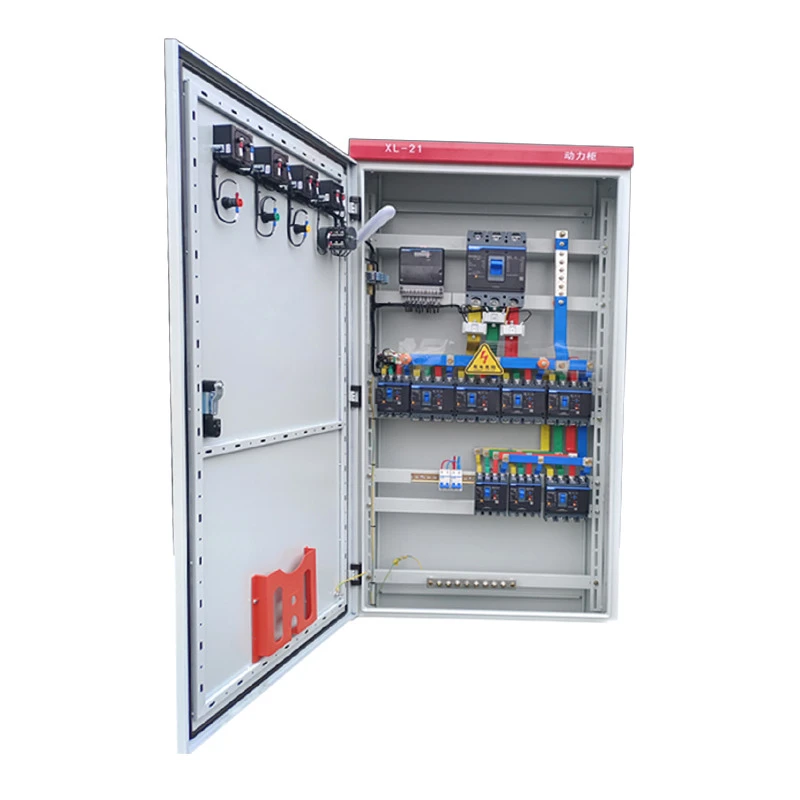

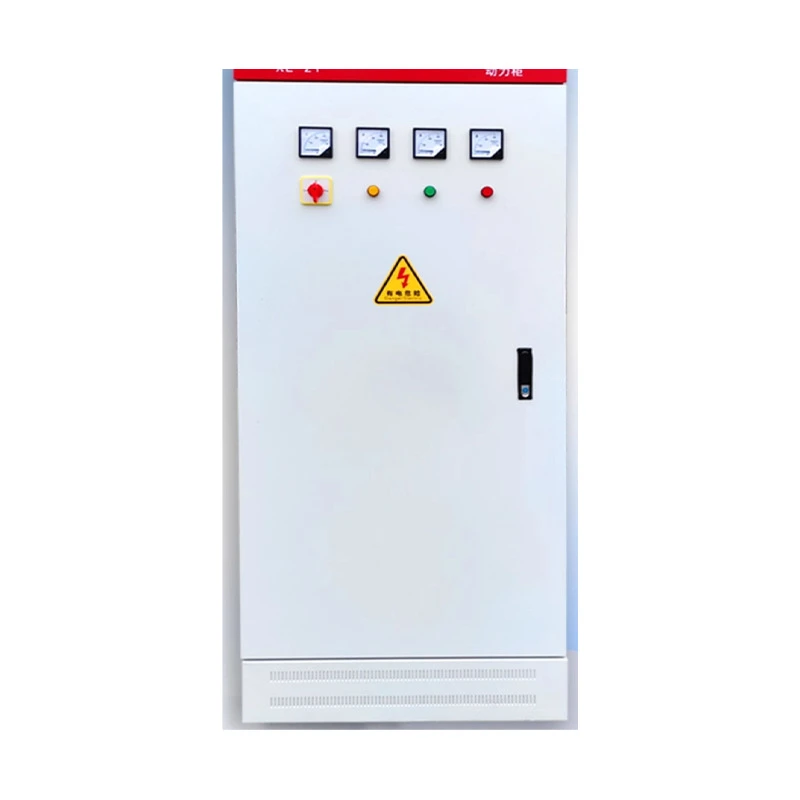

The cabinet is floor-standing with a single door. The door has an ammeter, a voltmeter, indicator lights, and a changeover switch, keeping the main readings and controls accessible from the front. Inside, modular mounting beams can be adjusted to accommodate different component sizes. The copper busbar wiring is arranged according to the required layout. The main components include molded case circuit breakers (MCCB), miniature circuit breakers (MCB), copper bars, neutral and ground bars, and a multi-function power meter. Component brands can be specified, and we install the selected components according to your list.
Clear Protection and Custom Wiring
The standard configuration provides short circuit protection and overload protection. If a short circuit occurs, the breaker trips to disconnect the fault. For an overload, the thermal-magnetic trip operates with a delay according to the overload condition. Leakage protection is optional and can be added when required.
We are based in Liushi Town, Yueqing City and have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team. Before the Metal Clad Switch Gear leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them at our factory and cover the freight cost.
The working temperature ranges from -20°C to +60°C. Relative humidity must not exceed 85%, and condensation is not allowed. The circuit number, meter layout, component brand, and secondary control wires can be customized according to your requirements. The Metal Clad Switch Gear can be configured according to the required circuit arrangement, component selection, and secondary wiring plan.
one-stop solution
professional team
high quality
Product Parameters
|
Parameter |
Value |
|
Cabinet Material |
Quality Cold-Rolled Steel Plate, Electrostatic Powder Coating, Ventilated Cooling Base With Louvers |
|
Protection Level |
IP30 (Indoor) |
|
Rated Voltage |
AC380V/AC220V, 50Hz |
|
Rated Current |
Incoming Up to 630A |
|
Structure Type |
Floor-Standing Single Door, Door With Meters, Indicator Lights, Changeover Switch |
|
Inside Structure |
Modular Mounting Beams, Copper Bar Busbar Wiring |
|
Parts |
Molded Case Circuit Breakers (MCCB), Miniature Circuit Breakers (MCB), Copper Bars, Neutral and Ground Bars, Multi-Function Power Meter |
|
Protection Functions |
Short Circuit Protection, Overload Protection (Leakage Protection Optional) |
|
Working Environment |
-20°C~+60°C, Humidity ≤85%, No Condensation |
|
Custom Range |
Circuit Number, Meter Layout, Part Brand, Secondary Control Wires |
