Electrical Ring Main Unit
A Compact Unit for 10kV Systems
Wenzhou Mingyue Electric Co., Ltd. has been operating in Liushi Town, Yueqing City for 7 years. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team. Our production complies with environmental requirements.
Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them. This 10kV Electrical Ring Main Unit is one of our high-voltage products.
Solid Insulation and Strong Ratings

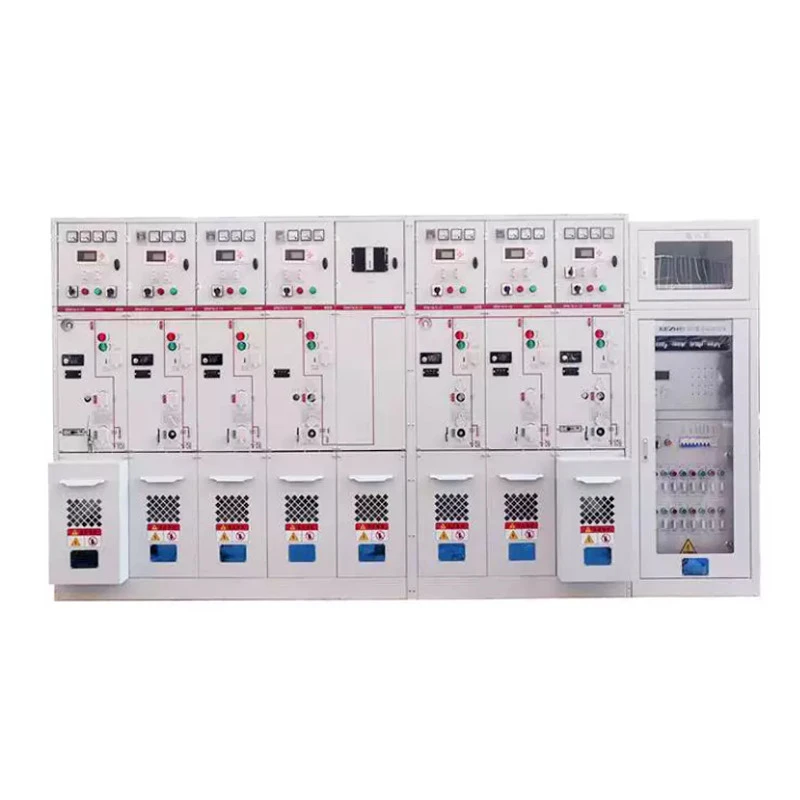

This is a high-voltage ring main unit with solid insulation for 10kV power distribution systems. The rated voltage is 10kV (12kV), and the rated frequency is 50Hz. The rated current is 630A. The rated short-time withstand current is 20kA/4s. This rating compares favorably with products of the same type.
The cabinet uses cold-rolled steel plate with an electrostatic powder coating. The solid insulation type uses epoxy resin cast modules. The protection level is IP30 for indoor installation. The structure uses modular unit combinations and can be expanded with incoming and outgoing units, PT units, and metering units. The switch type is a load switch. A vacuum load switch or an SF6 load switch can be selected.
Flexible Units for Your Project
We support OEM and ODM services. The minimum order quantity is 30 units. Different unit configurations can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Electrical Ring Main Unit provides short circuit protection, overcurrent protection, and ground fault protection. Relay protection and motor operation can be added as options. The operation method supports manual control, and electric remote operation is also available. The working environment temperature ranges from -20°C to +40°C. Humidity must not exceed 90%, and condensation is not allowed. It is suitable for indoor installation.
The unit number, meter configuration, secondary protection plan, and metering module can be customized according to your project requirements. The Electrical Ring Main Unit can be configured according to the required unit combination and protection arrangement.
Product Parameters
|
Parameter |
Value |
|
Product Name |
High Voltage Ring Main Unit (Solid Insulation Ring Main Unit, 10kV Ring Main Switchgear) |
|
Rated Voltage |
10kV (12kV) |
|
Rated Frequency |
50Hz |
|
Rated Current |
630A |
|
Rated Short-Time Withstand Current |
20kA/4s |
|
Cabinet Material |
Cold-Rolled Steel Plate, Electrostatic Powder Coating; Solid Insulation Type Epoxy Resin Cast Modules |
|
Protection Level |
IP30 (Indoor) |
|
Structure |
Modular Unit Combination, Expandable |
|
Switch Type |
Load Switch (Vacuum / SF6 Optional) |
|
Protection Functions |
Short Circuit, Overcurrent, Ground Fault (Relay Protection, Motor Operation Optional) |
|
Operation Method |
Manual / Electric Remote (Optional) |
|
Custom Range |
Unit Number, Meter Setup, Secondary Protection Plan, Metering Module |
