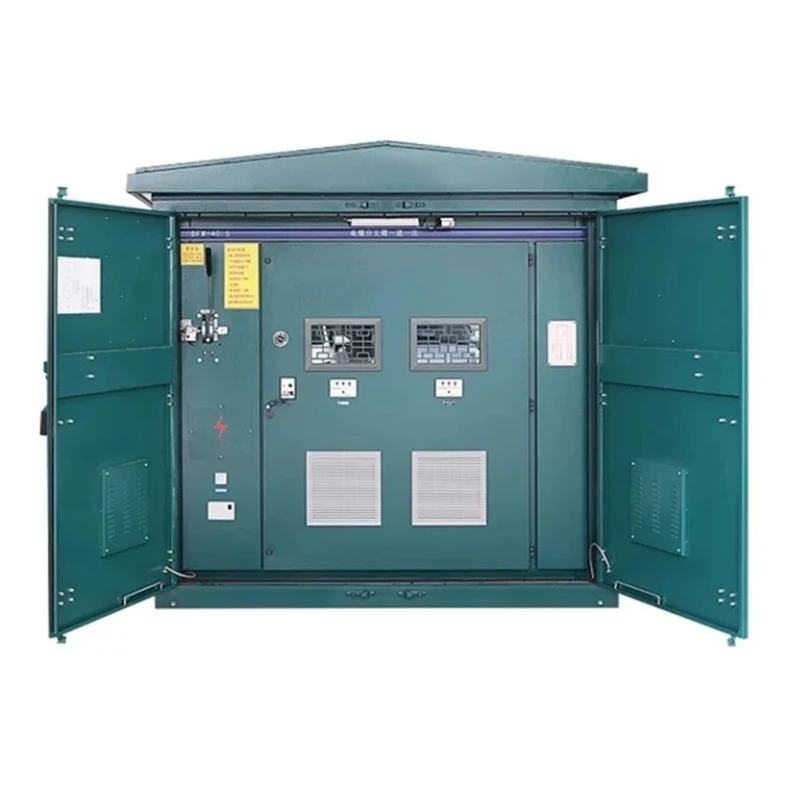

Package Transformer Substation
A Complete Power Station in One Box
Wenzhou Mingyue Electric Co., Ltd. is based in Liushi Town, Yueqing City. We started our factory in 2019 and now have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team.
Our production complies with environmental requirements. Before each batch leaves the factory, we test the voltage and current and inspect 100% of the products before packing.
We provide a 5-year warranty. If goods are damaged during shipping, we repair or remake them. The Package Transformer Substation follows these same quality standards.
Ready to Install and Built for Outdoors
This is a European-style box substation, also known as a complete box substation. The high-voltage side is 10kV, and the low-voltage side is 0.4kV. The voltage level can be customized. Standard capacities range from 50kVA to 2,500kVA. The unit uses three-phase AC power, with 50Hz or 60Hz available.
The structure includes a high-voltage room, transformer room, and low-voltage room in one pre-installed cabinet. The shell can be made of cold-rolled steel plate or stainless steel. Outdoor versions provide protection against rain, dust, and corrosion. The protection setup includes high-voltage fuses, load switches, low-voltage breakers, overload protection, short-circuit protection, and leakage protection.
The unit also has temperature and humidity control and fan cooling. The standard protection level is IP30, while the outdoor type can reach IP44.
Custom Options and Simple Setup
We support OEM and ODM services with a minimum order quantity of 30 units. Different specifications can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Package Transformer Substation can be customized in terms of capacity, voltage, cable layout, cabinet material, and protection functions. The complete unit can be transported to the installation site and lifted into position. It is suitable for outdoor installation.
The working temperature is -20°C to +40°C. Our box substations are used at construction sites and in industrial parks. The Package Transformer Substation is designed for these installation environments.
Product Parameters
|
Parameter |
Value |
|
Product Name |
Package Transformer Substation (European-Style Box Substation / Complete Box Substation) |
|
Rated Voltage |
High Voltage Side 10kV; Low Voltage Side 0.4kV (Customizable) |
|
Rated Capacity |
50kVA–2500kVA (Customizable) |
|
Phase System |
Three-Phase AC 50/60Hz (Optional) |
|
Structure |
High Voltage Room, Transformer Room, Low Voltage Room Integrated |
|
Shell Material |
Cold-Rolled Steel Plate / Stainless Steel (Optional) |
|
Protection Setup |
High Voltage Fuses, Load Switches; Low Voltage Breakers; Overload, Short Circuit, Leakage Protection |
|
Protection Level |
IP30 (Outdoor Type Can Upgrade to IP44) |
|
Working Environment |
Outdoor Installation, -20°C–+40°C |
|
Custom Range |
Capacity, Voltage, Cable Plan, Cabinet Material, Protection Functions |
