Three Phase Variable Transformer
Smooth Voltage Control for Labs
Wenzhou Mingyue Electric Co., Ltd. is based in Liushi Town, Yueqing City. We started manufacturing electrical equipment in 2019 and now have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees.
We have our own R&D team and can carry out product development independently. Our production complies with environmental requirements. Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. If goods are damaged during shipping, we repair or remake them.
We provide a 5-year warranty. The TSGC2 Three Phase Variable Transformer is one of our standard products.

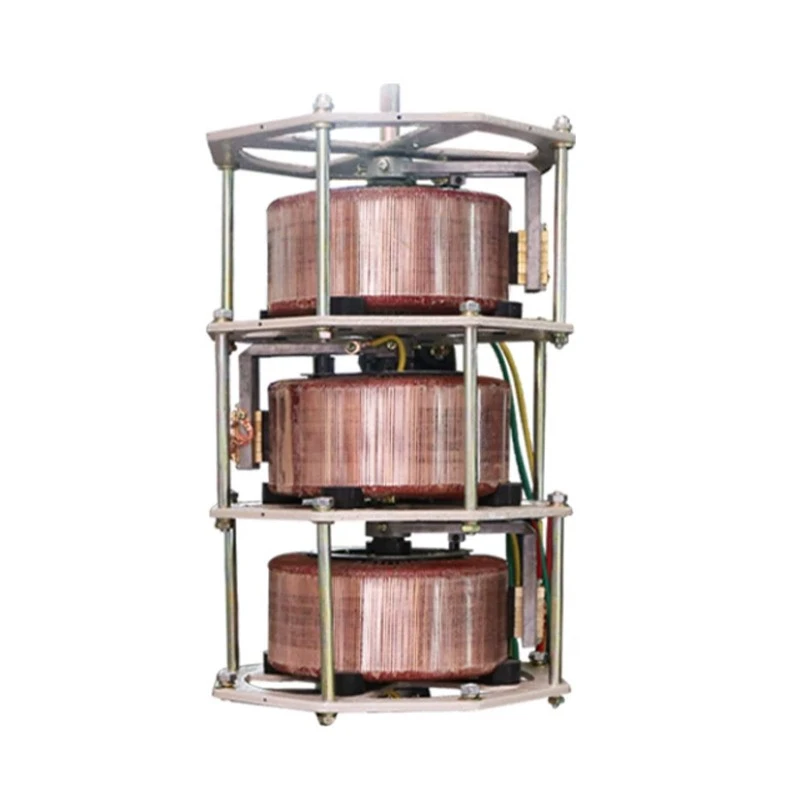

Ring Coils and Brush Adjustment
This is a TSGC2 three-phase auto-coupling contact-type unit. The capacity ranges from 3kVA to 60kVA. The unit shown in the picture is 9KVA. It uses three-phase input and supports both 50Hz and 60Hz. The input voltage is three-phase 380V. The output voltage can be adjusted continuously from 0 to 430V. The adjustment range has no dead spots. The winding uses pure copper coils in a ring shape. A carbon brush slides along the winding to adjust the voltage.
The insulation class is A. The cooling method is natural air cooling. The structure contains three sets of ring-core windings, and the unit is adjusted manually.

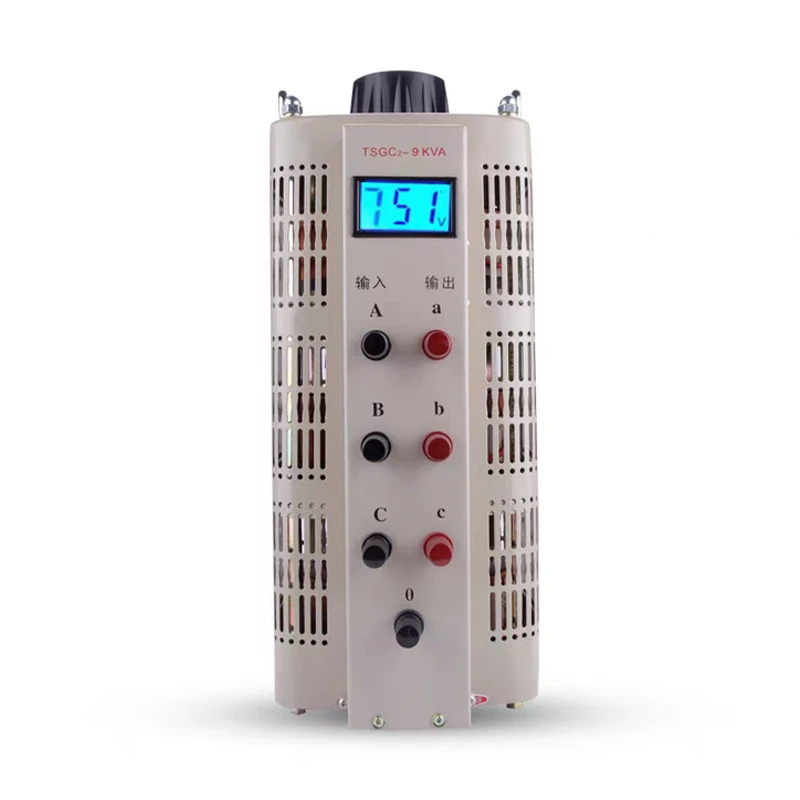

A digital model is available if clearer readings are required. It displays the output voltage in real time. The terminals are clearly marked. A, B, and C are the inputs, while a, b, c, and 0 are the outputs.
Good for Testing and Heating Control
We support OEM and ODM services with a minimum order quantity of 30 units. Different models and colors can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The main function of the Three Phase Variable Transformer is smooth and continuous voltage adjustment. It is suitable for laboratory equipment testing, motor testing, and heating temperature control. Operation is simple. You turn the knob to adjust the voltage smoothly. The working temperature is -5°C to +40°C, and the altitude must not exceed 1,000 meters.
one-stop solution
professional team
high quality
Product Parameters
|
Parameter |
Value |
|
Model |
TSGC2 Series Three-Phase Auto-Coupling Contact-Type Transformer |
|
Capacity |
3kVA–60kVA (Picture Shows TSGC2-9KVA) |
|
Phase / Frequency |
Three-Phase, 50/60Hz |
|
Input Voltage |
Three-Phase 380V |
|
Output Voltage |
0–430V Continuous Adjustment |
|
Winding |
Pure Copper Coils, Ring Carbon Brush Sliding Adjustment |
|
Insulation Class |
A Class |
|
Cooling Method |
Natural Air Cooling |
|
Structure |
Three Sets of Ring-Core Windings, Manual Rotation |
|
Display |
Digital Model Shows Output Voltage in Real Time (Optional) |
|
Terminals |
A/B/C Input; a/b/c/0 Output |
|
Functions |
Continuous Smooth Voltage Adjustment, Lab/Equipment Testing, Motor Testing, Heating Control |
