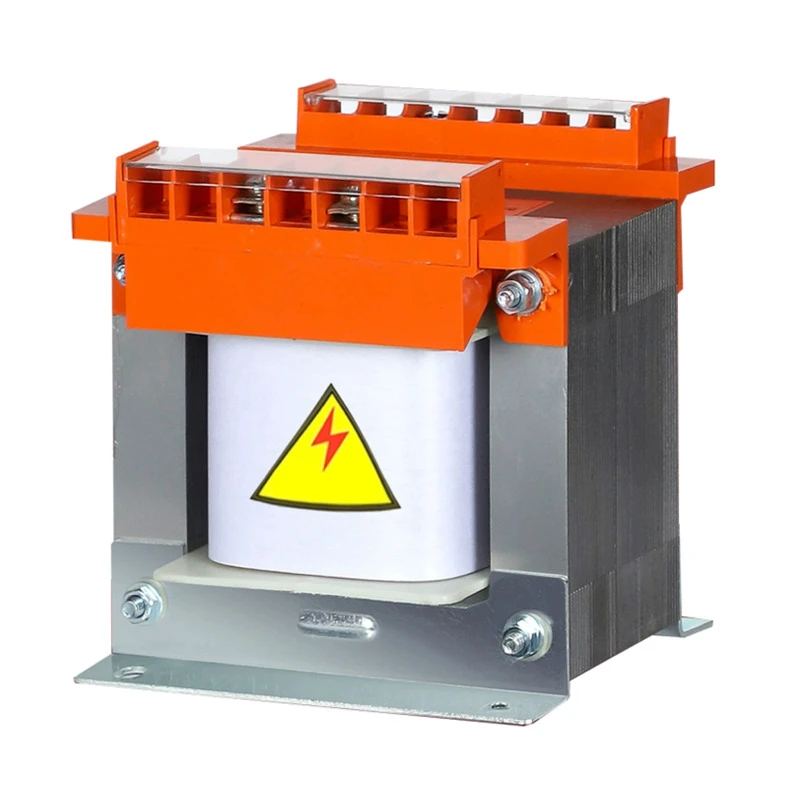

Single Phase Dry Type Transformer
Low Voltage Power for Control Circuits
Wenzhou Mingyue Electric Co., Ltd. is based in Liushi Town, Yueqing City. We started manufacturing electrical equipment in 2019 and now have 7 years of experience. Our plant covers 1,000 square meters and has 20 employees. We have our own R&D team and can carry out product design independently.
Our production complies with environmental requirements. Before each unit leaves the factory, we test the voltage and current and inspect 100% of the products before packing. If goods are damaged during shipping, we repair or remake them. We provide a 5-year warranty. The Single Phase Dry Type Transformer is one of our standard products.
Many Voltage Choices in One Unit
This is a BK series single-phase control transformer. The capacity ranges from 50VA to 5,000VA. It uses single-phase input and supports both 50Hz and 60Hz. Common input voltages include 220V and 380V. Multi-voltage input can also be customized according to your requirements. Output voltage options include 24V, 36V, 110V, and 220V. Multi-winding taps are also available, allowing one input to provide several output voltages.
The windings use pure copper coils. Copper has good conductivity and stable electrical performance. B-class or F-class insulation is available. The cooling method is natural air cooling. The structure uses an EI silicon steel core with orange transparent protection terminals. Fixed mounting feet are fitted at the bottom.
Safe Power for Machine Tools
We support OEM and ODM services. The minimum order quantity is 30 units. Different models and colors can be mixed in one order. If you provide drawings, we can manufacture according to them. Custom samples can be completed within one week. Both standard and customized products can be produced within one week. Our monthly output is valued at approximately 2 million yuan.
The Single Phase Dry Type Transformer is mainly used inside machine tools and control cabinets. It supplies low-voltage power to control circuits, indicator lights, and solenoid valves. It provides electrical isolation and voltage step-down. This helps protect the control system. The working temperature is -5°C to +40°C, and the altitude must not exceed 1,000 meters. The Single Phase Dry Type Transformer can be customized in terms of capacity, input voltage, output voltage, and winding configuration.
Product Parameters
|
Parameter |
Value |
|
Model |
BK Series Single-Phase Control Transformer |
|
Capacity |
50VA–5000VA (Customizable) |
|
Phase / Frequency |
Single-Phase, 50/60Hz (Optional) |
|
Input Voltage |
Standard 220V / 380V (Customizable Multi-Voltage Input) |
|
Output Voltage |
24V / 36V / 110V / 220V, etc. (Multi-Winding Taps Optional) |
|
Winding Material |
Pure Copper Coils |
|
Insulation Class |
B Class / F Class (Optional) |
|
Cooling Method |
Natural Air Cooling |
|
Structure |
EI Silicon Steel Core, Orange Terminals |
|
Installation |
Bottom Fixed Mounting Feet |
|
Applications |
Machine Tools, Control Cabinets, Indicator Lights, Solenoid Valves, Low-Voltage Power Supply, Isolation and Step-Down |
